Air Cooler
Home Appliances
TECHNICAL DETAILS
Built with 32-bit Renesas Controller
| Input Voltage | : 230V AC ~ 50 Hz |
|---|---|
| Power Supply Output | : 12 V, 2 A |
| Controller | : RX130 - R5F51303ADFL(32-MHz, 32-bit ) |
| Operating Temperature Range | : –40 to +85°C |
SENSOR | |
| Water Level Sensor and Humidity Sensor | |
| PM Sensor | : Dust Sensor |
| Thermistor | : Temperature Sensor |
FEATURES
- Power On/Off Control
- Child Lock and Night Mode
- Water Level Indicator
- Cool, Cool/Swing, Heat, Heat/Swing and Swing
- Mosquito Repellent
- Humidity Sensor
- PM Sensor (Air Quality Indicator)
- Display (Water Level, Error Code, Speed, Timer and Temperature)

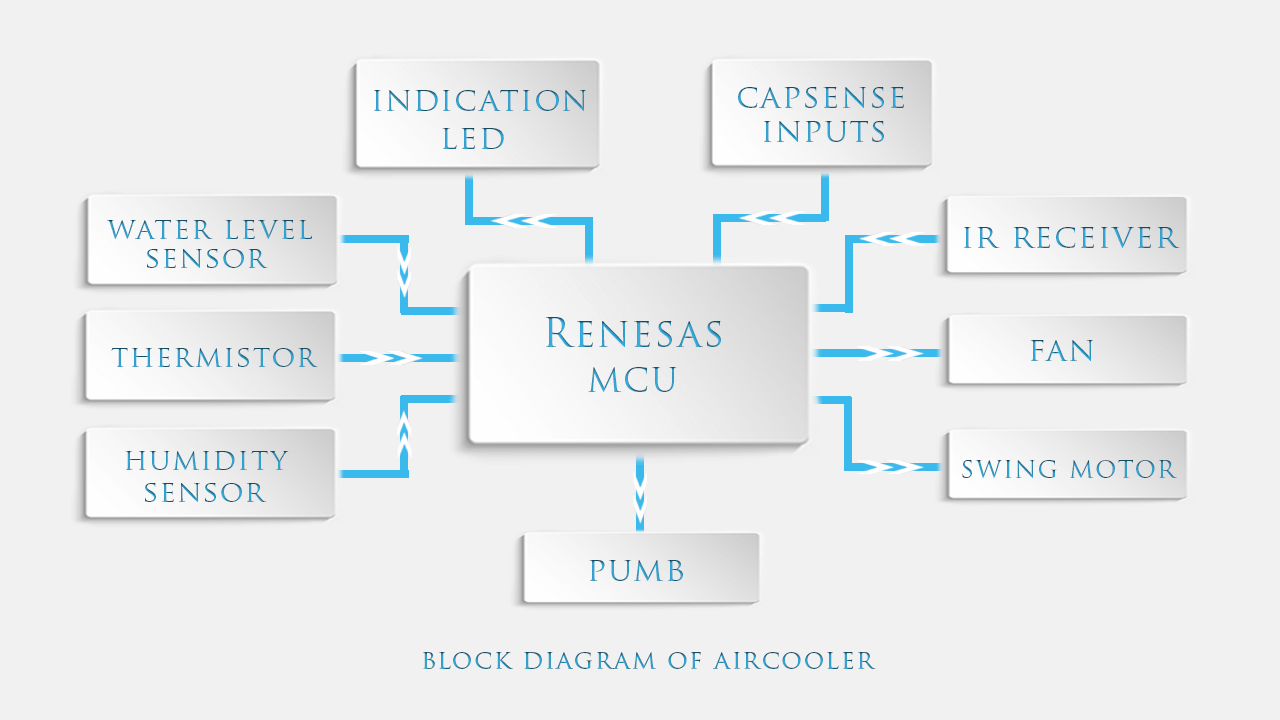

BLOCK DIAGRAM
